LC135 Y15ZR Y16ZR HPSP RACING TIMING CHAIN TENSIONER GUIDE JET UP 4.65MM 6MM-8MM 8MM-10MM

HPSP Racing Tensioner Guide (Jet Up) is a timing chain (cam chain) tensioner guide for Yamaha LC135, Y15ZR and Y16ZR engines with a jet up / block spacer setup. Raising the cylinder block lengthens the timing chain path, so a longer guide is needed. Choose the size that matches your spacer thickness.

• Made for jet up (block spacer) builds on Yamaha LC135, Y15ZR and Y16ZR
• Longer guide length to suit raised block height
• 3 size options matched to spacer thickness
• HPSP racing part, sold by Speed Parts

Brand

HPSP

Product

Racing Tensioner Guide (Jet Up)

Model/SKU

Not verified (select by size)

Type

Timing chain tensioner guide

Main spec

4.65MM / 6-8MM / 8-11MM jet up

Material

Not verified

Compatibility

Yamaha LC135, Y15ZR, Y16ZR (jet up setup)

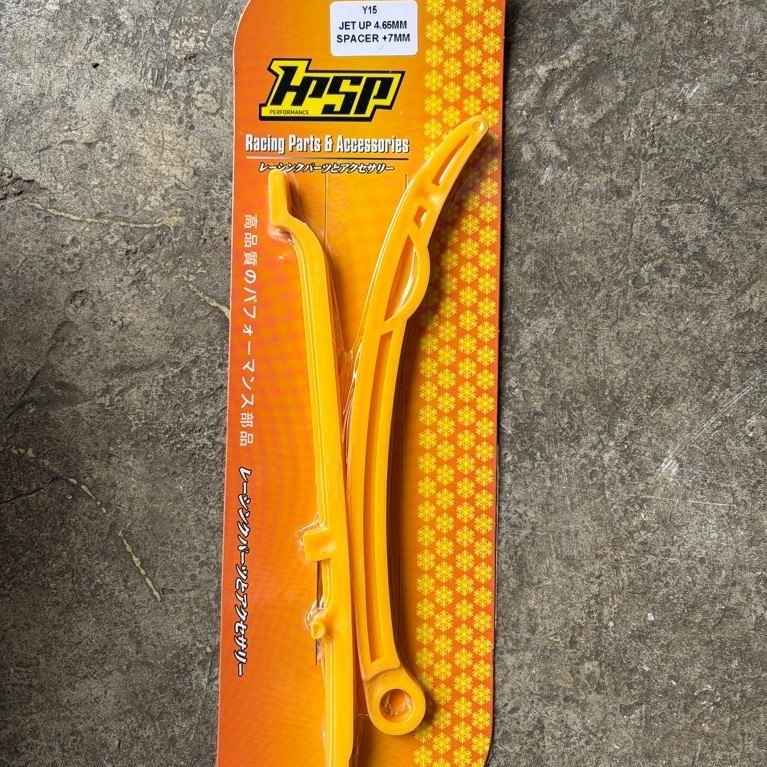

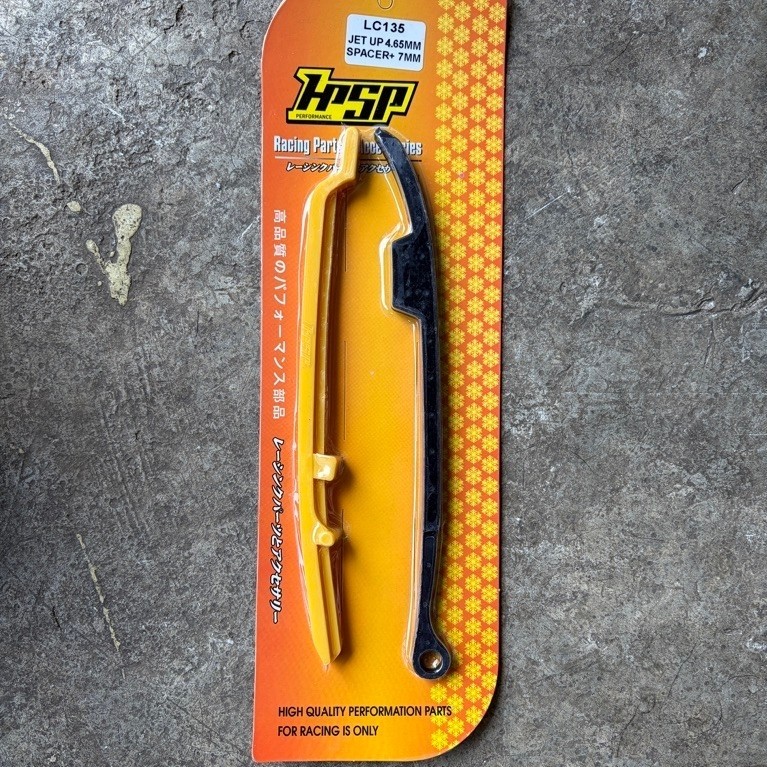

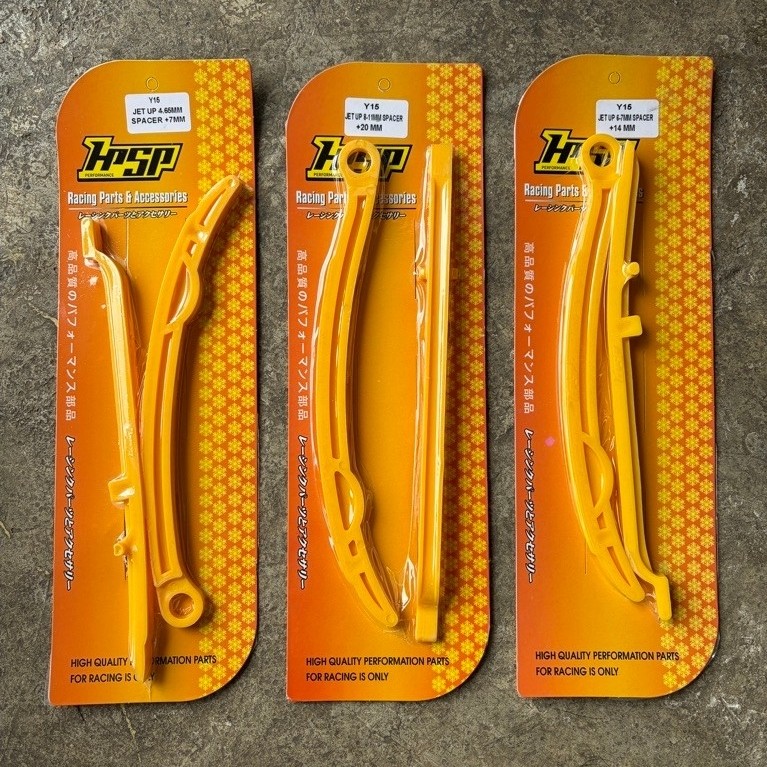

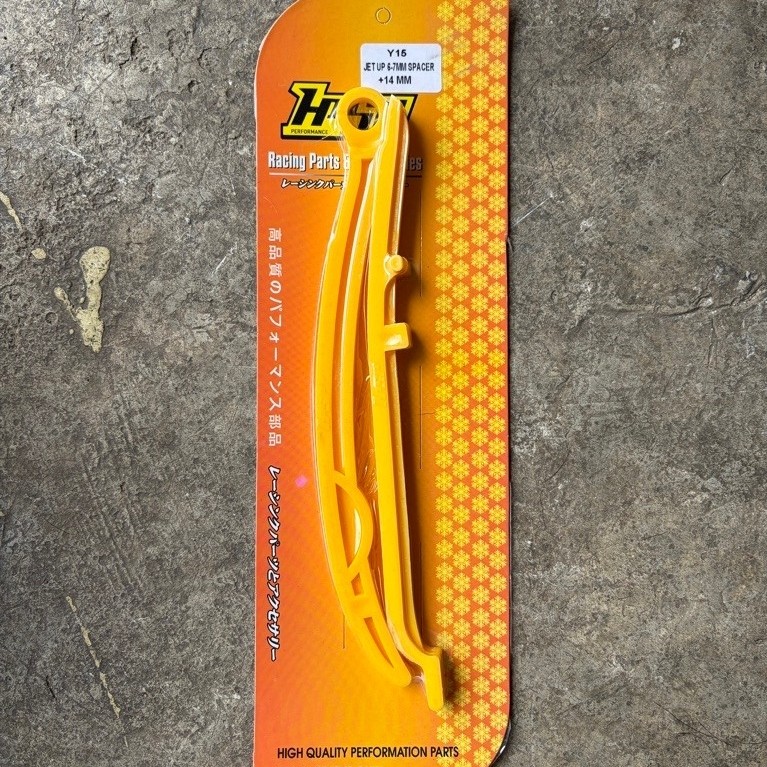

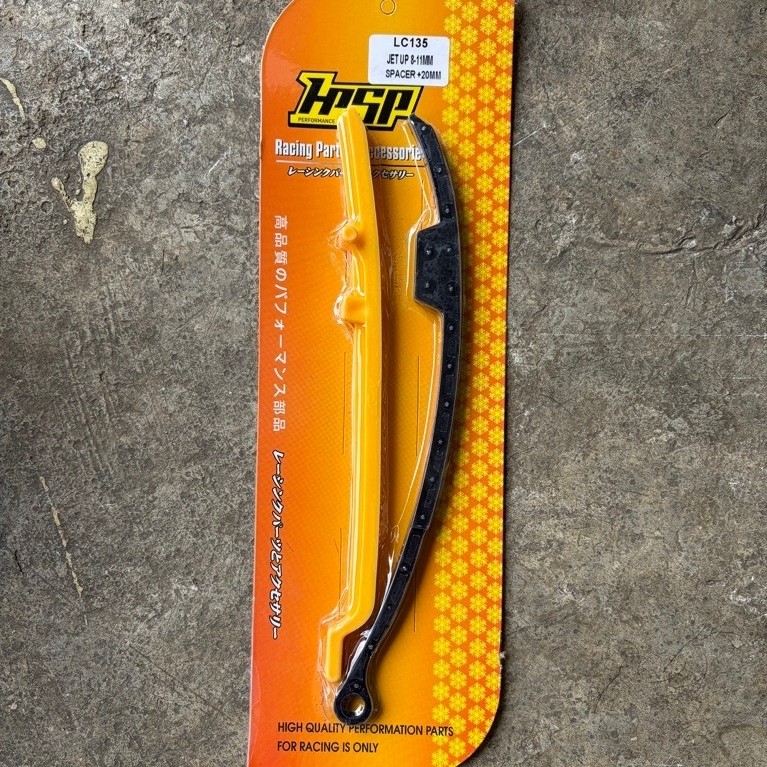

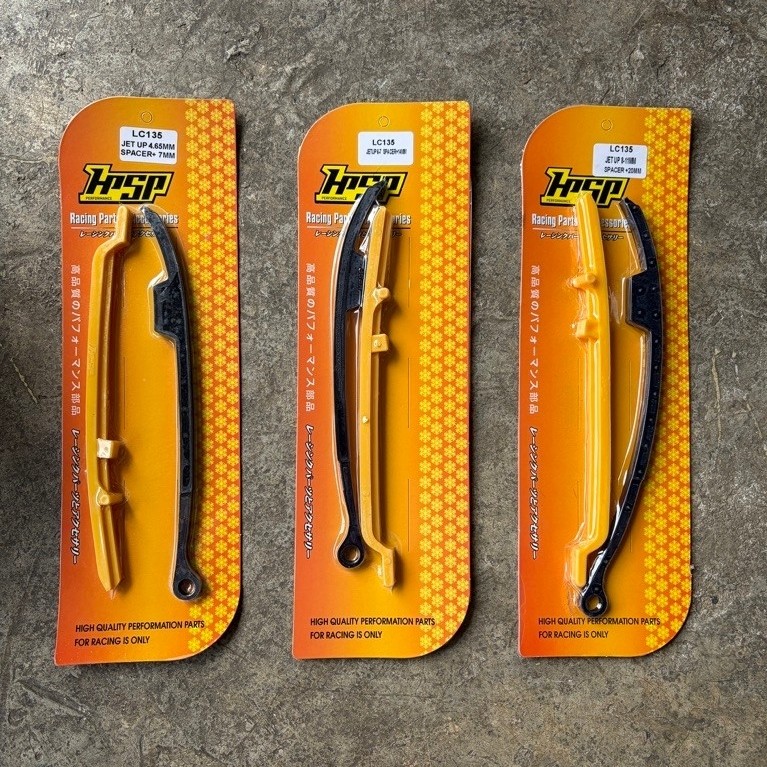

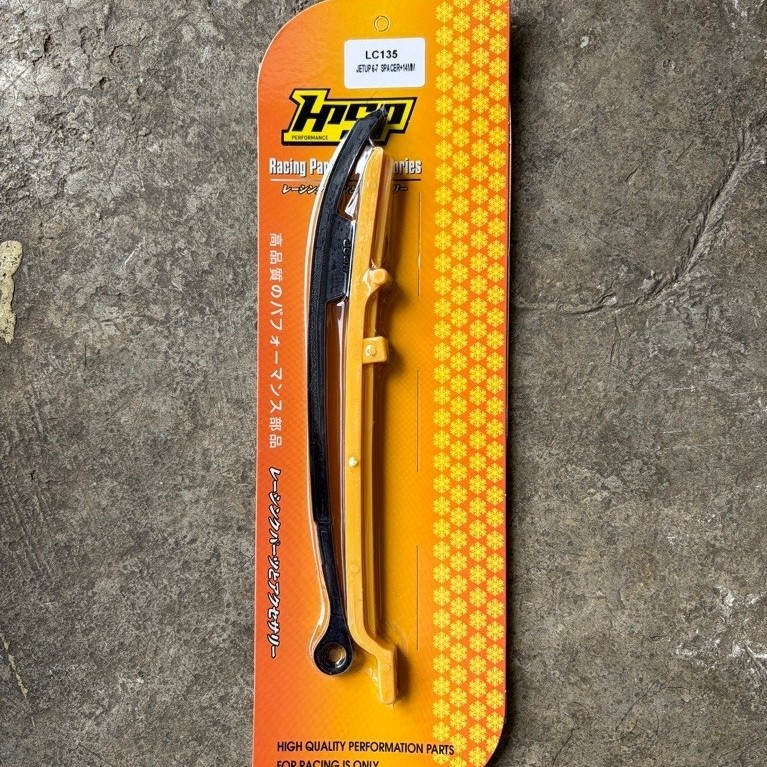

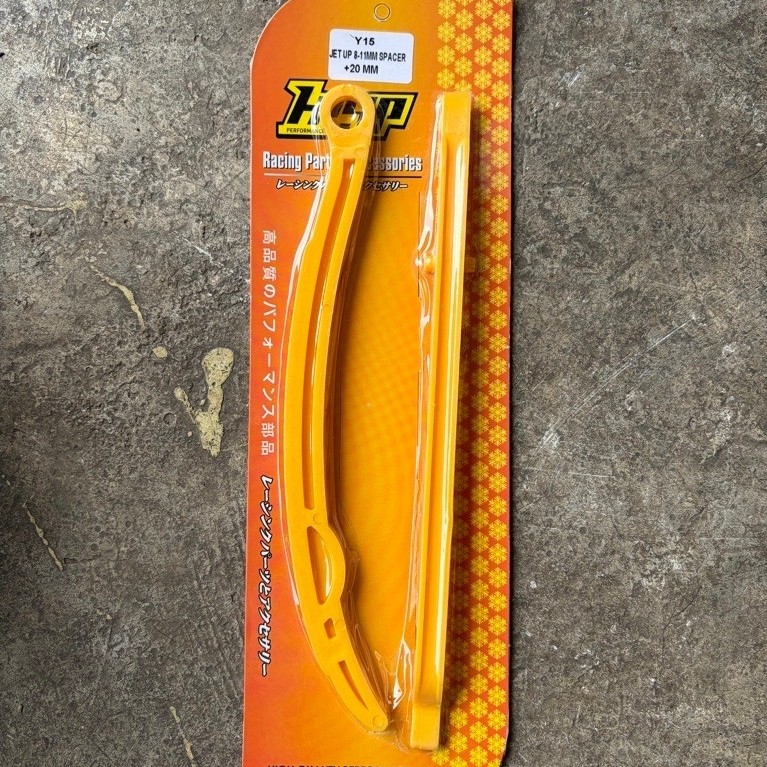

Sizes as labelled on the product: + 4.65MM jet up (Spacer +7MM) + 6-8MM jet up (Spacer +14MM) + 8-11MM jet up (Spacer +20MM) The first value is the jet up / block spacer thickness range. The bracket value is the guide extension stated on the packaging. Select both your bike model (LC135 or Y15ZR/Y16ZR) and spacer size when ordering, and check stock for your exact combination.

Replaces the standard tensioner guide during a jet up block build. Requires removing the cylinder head and block, so professional workshop installation is recommended. Re-check cam timing and chain tension after fitting. Package: HPSP tensioner guide as pictured in retail blister pack.

HPSP jet up timing chain tensioner guide for Yamaha LC135, Y15ZR and Y16ZR block spacer builds in 4.65MM, 6-8MM and 8-11MM sizes.
